51.2V 314Ah LiFePO4 Battery Module | High Voltage Energy Storage System
The GHR-314 High Voltage LiFePO4 Battery System is designed for commercial and industrial energy storage applications. Each battery module provides 51.2V 314Ah / 16.08kWh, and multiple modules can be connected in series to build high-voltage battery systems with capacities up to 241.15kWh.
With long cycle life, intelligent BMS monitoring and flexible modular configuration, it is suitable for solar energy storage, backup power and commercial ESS projects.
51.2V 314Ah LiFePO4 battery module
16.08kWh energy per battery module

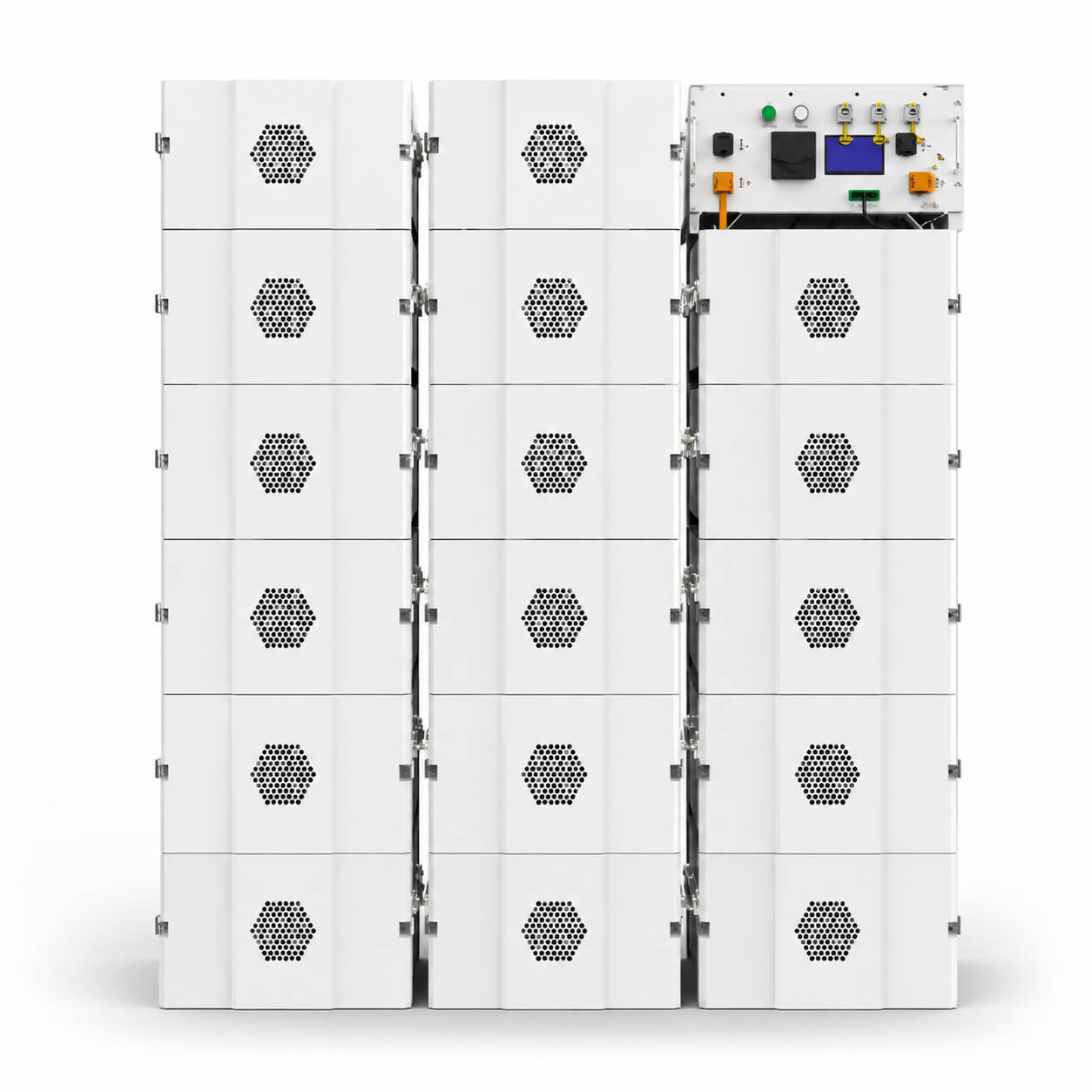

Modular high-voltage design
Supports 3–15 battery modules in series
System voltage up to 768V
System capacity up to 241.15kWh
Recommended charge/discharge current: 157A
6000+ cycles at 90% DOD
CAN communication
Intelligent BMS protection
Design lifespan up to 15 years
Compatible with major inverter brands
| Parameter | Specification |
|---|---|
| Model | GHR-314 |
| Battery Type | LiFePO4 |
| Module Voltage | 51.2V |
| Module Capacity | 314Ah |
| Module Energy | 16.08kWh |
| Recommended Charge Current | 157A |
| Recommended Discharge Current | 157A |
| Module Dimensions | 801 × 532 × 233 mm |
| Module Weight | 115 kg |
| System Configuration | 3–15 Modules in Series |
| System Voltage | 153.6–768V |
| System Energy | 48.23–241.15kWh |
| Communication | CAN |
| IP Rating | IP20 |
| Cycle Life | ＞6000 Cycles |
| Design Lifespan | 15 Years |
Commercial & Industrial Energy Storage / Solar PV Storage / Backup Power / Microgrid / Peak Shaving / Off-Grid Energy Storage
