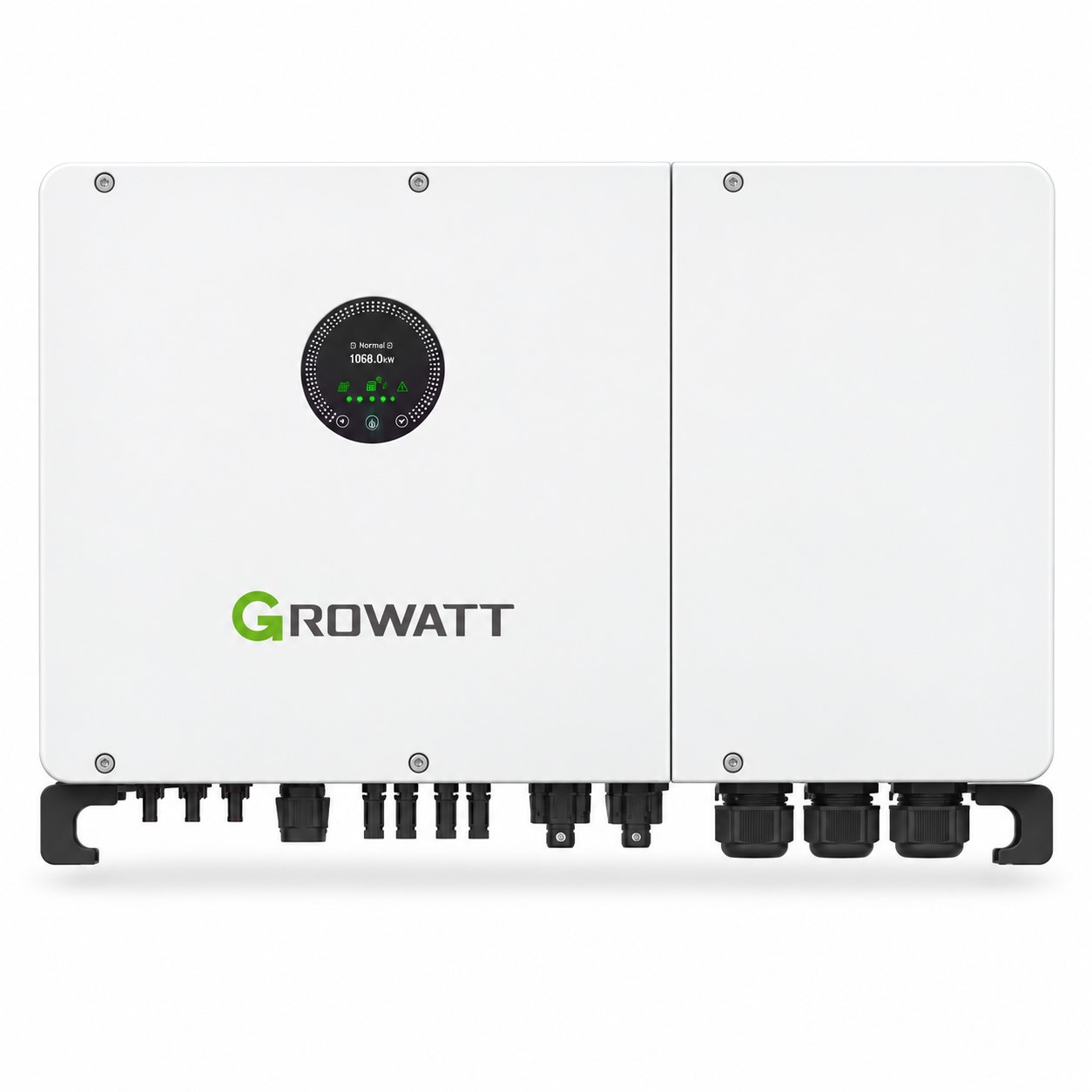

The 29.9–50kW Three-Phase Hybrid Solar Inverter is designed for commercial and industrial energy storage and hybrid power applications.
It integrates solar PV, battery storage, grid and diesel generator input in one platform, making it suitable for C&I ESS, backup power, weak-grid and off-grid projects.
With multiple MPPT inputs, high-voltage battery compatibility, fast transfer capability and intelligent power management, the inverter provides flexible system integration for different project requirements.
1. 29.9 / 30 / 36 / 40 / 50kW models
2. Multiple MPPT PV inputs
3. Battery voltage range: 200–900V
4. Recommended battery voltage: 512V
5. Supports DG input
6. UPS and black start function
7. Off-grid parallel operation
8. 100% three-phase unbalanced output
9. 150% off-grid overload capability
10. Switching time ≤10ms
11. Maximum efficiency up to 98.1%
12. RS485 / CAN BMS communication
13. IP66 protection
| Parameter | Specification |
|---|---|
| Model Range | 29.9 / 30 / 36 / 40 / 50kW |
| Max. PV Input Voltage | 1100V |
| MPPT Voltage Range | 180–1000V |
| Battery Voltage Range | 200–900V |
| Recommended Battery Voltage | 512V |
| Battery Inputs | 3 |
| Max. Charge / Discharge Current | 55A × 3 |
| BMS Communication | RS485 / CAN |
| Nominal AC Voltage | 380 / 400V |
| Grid Frequency | 50 / 60Hz |
| THDi | <3% |
| Switching Time | ≤10ms |
| Max. Efficiency | 98.1% |
| Cooling | Smart Air Cooling |
| Protection Rating | IP66 |
C&I Energy Storage / Solar + Storage / Generator + Battery / Backup Power / Weak Grid / Off-Grid Power / Microgrid
