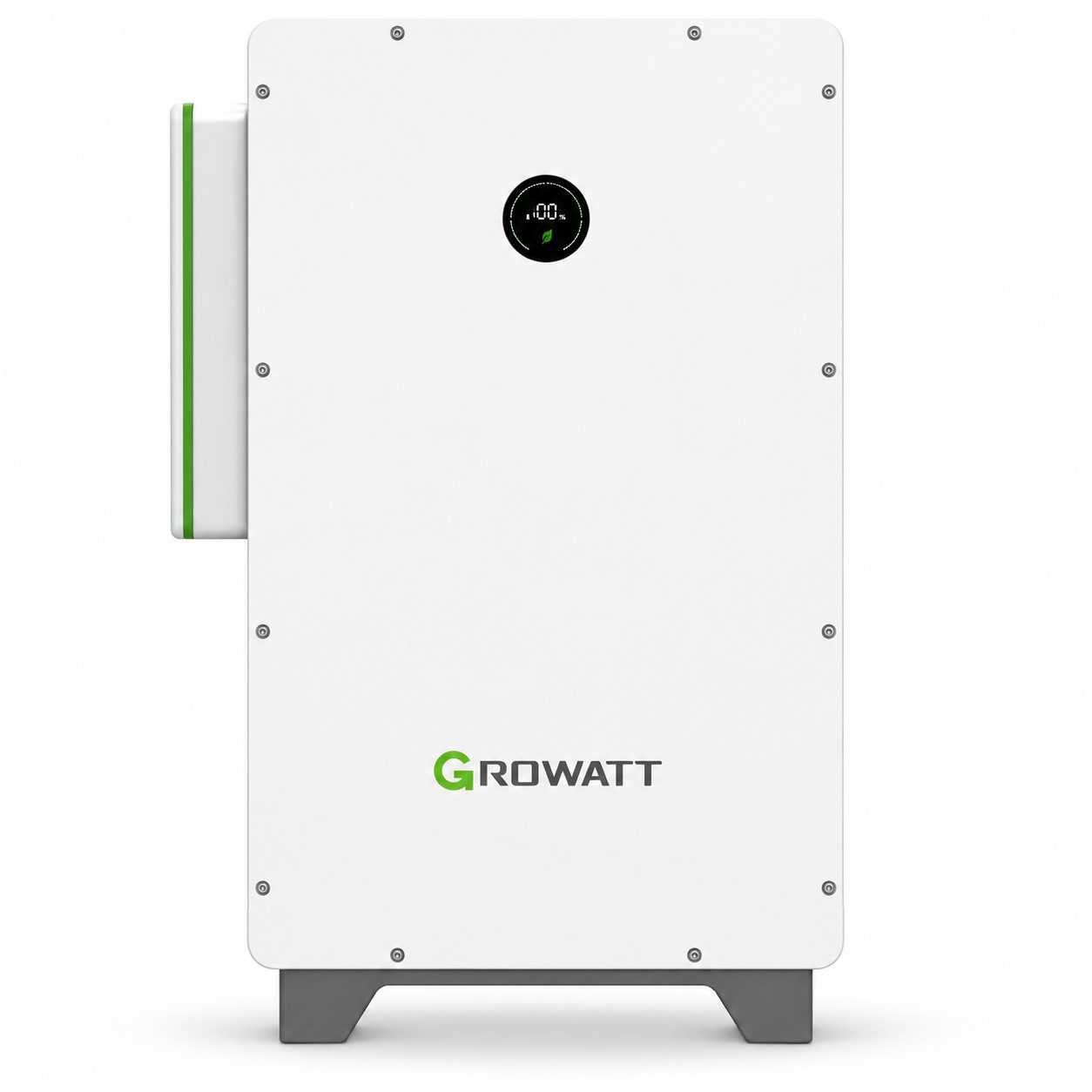

The 50–100kW Three-Phase Hybrid Solar Inverter is designed for commercial and industrial energy storage, solar-storage and hybrid power applications.
Available in 50kW, 63kW, 75kW and 100kW power levels, the series supports flexible integration of PV, battery storage, grid and diesel generator systems.
With high-voltage battery compatibility, multiple MPPT inputs, UPS and black-start functions, remote generator control and off-grid operation, it is suitable for C&I ESS, microgrids, backup power and weak-grid applications.
50 / 63 / 75 / 100kW power range
Three-phase high-voltage hybrid inverter
Supports PV + Battery + Grid + Diesel Generator
Multiple MPPT PV inputs
UPS function and black start
Remote diesel generator control
100% three-phase unbalanced backup load
Parallel system expansion
Grid-support functions
High-voltage battery interface
RS485 / CAN BMS communication
Smart air cooling
IP66 protection
| Parameter | Specification |
|---|---|
| Product Type | Three-Phase Hybrid Solar Inverter |
| Rated Power | 50 / 63 / 75 / 100kW |
| Max. Recommended PV Power | 109.2 / 124.8 / 156 / 156kW |
| Max. PV Input Voltage | 1100V |
| MPPT Voltage Range | 180–800V |
| Number of MPPTs | 7 / 8 / 10 / 10 |
| Battery Voltage Range | 600–1000V |
| Recommended Battery Voltage | 768V |
| Max. Charge / Discharge Current | 83.3 / 105 / 125 / 167A |
| BMS Communication | RS485 / CAN |
| Rated AC Voltage | 380 / 400 / 415V |
| Grid Frequency | 50 / 60Hz |
| Power Factor | -1 to +1 |
| THDi | <3% |
| Grid Connection | 3P3W+PE / 3P4W+PE |
| Load Unbalance | 100% Three-Phase Unbalanced |
| Cooling | Smart Air Cooling |
| Protection Rating | IP66 |
| Max. Efficiency | Up to 98.2% |
The inverter can be used as part of a complete hybrid power system combining:
Solar PV + Battery Energy Storage + Grid + Diesel Generator
Typical operating functions include:
Solar self-consumption
Battery charging and discharging
Grid peak shaving
Backup power
Generator-assisted charging
Weak-grid support
Off-grid power supply
Microgrid energy management
Suitable for:
Commercial & Industrial ESS
Solar + Storage Projects
Generator + Battery Hybrid Systems
Microgrids
Peak Shaving
Backup Power
Weak-Grid Areas
Remote & Off-Grid Projects
