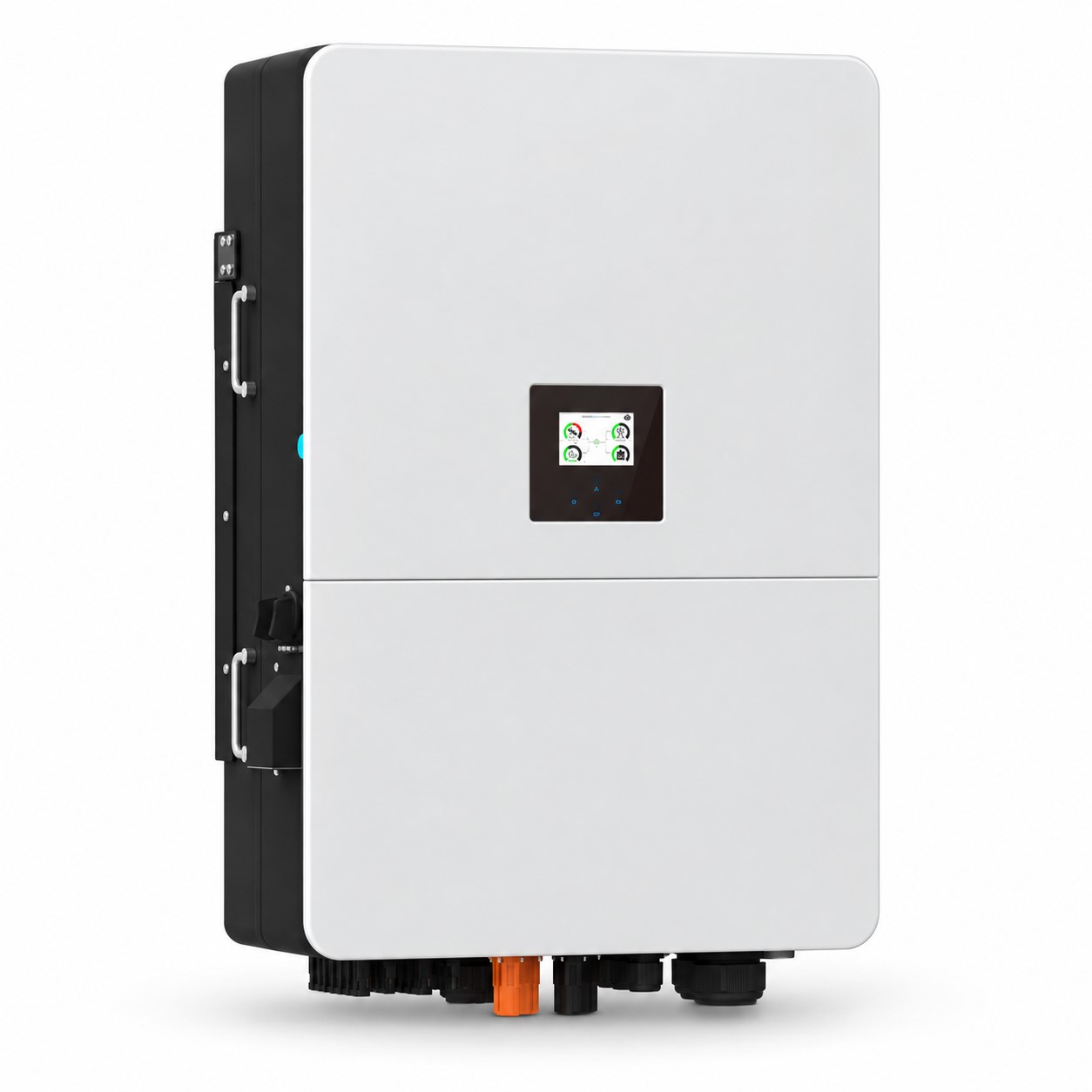

The 60–80kW Three-Phase Hybrid Inverter is designed for commercial and industrial energy storage applications, integrating solar PV, high-voltage battery storage, grid and diesel generator into one flexible power platform.
With a wide 160–1000V battery voltage range, dual battery inputs, multiple MPPT trackers and high charging/discharging capability, the inverter is suitable for C&I ESS, solar-storage projects, backup power, microgrids and generator-hybrid systems.
Available power ratings include 60kW, 70kW, 75kW and 80kW.
60 / 70 / 75 / 80kW three-phase hybrid inverter
High-voltage lithium battery support
Battery voltage range: 160–1000V
Dual battery inputs
Max. charge/discharge current: 80A + 80A
Supports multiple batteries in parallel
6 MPPT trackers
Up to 160kW PV access power
100% unbalanced output
Supports AC coupling for existing solar systems
Supports on-grid and off-grid operation
Supports diesel generator integration
Up to 10 units parallel operation
Intelligent air cooling
IP65 protection
RS485 / RS232 / CAN communication
Optional GPRS / WiFi / Bluetooth / 4G / LAN monitoring
| Parameter | Specification |
|---|---|
| Model Range | SUN-60K / 70K / 75K / 80K-SG02HP3 |
| Rated AC Power | 60 / 70 / 75 / 80kW |
| Battery Type | Lithium-ion |
| Battery Voltage Range | 160–1000V |
| Battery Inputs | 2 |
| Max. Charging Current | 80A + 80A |
| Max. Discharging Current | 80A + 80A |
| Max. PV Access Power | 120 / 140 / 150 / 160kW |
| Max. PV Input Power | 96 / 112 / 120 / 128kW |
| Max. PV Input Voltage | 1000V |
| Start-up Voltage | 180V |
| MPPT Voltage Range | 150–850V |
| Rated PV Voltage | 650V |
| No. of MPPT Trackers | 6 |
| Max. AC Apparent Power | 66 / 77 / 82.5 / 88kVA |
| Grid Connection | 3L + N + PE |
| Rated Grid Voltage | 220/380V, 230/400V |
| Grid Frequency | 50 / 60Hz |
| THDi | <3% |
| Max. Efficiency | 98.7% |
| Euro Efficiency | 98.1% |
| MPPT Efficiency | >99% |
| Communication | RS485 / RS232 / CAN |
| Protection Rating | IP65 |
| Cooling | Intelligent Air Cooling |
| Operating Temperature | -40°C to +60°C |
| Max. Altitude | 3000m |
| Noise | ≤65dB |
| Dimensions | 606 × 927 × 314mm |
| Weight | Approx. 105kg |
The inverter supports flexible integration of:
Solar PV + Battery Storage + Grid + Diesel Generator
Typical functions include:
Solar self-consumption
Peak shaving
Battery backup
Generator-assisted charging
AC coupling retrofit
On-grid / off-grid operation
Microgrid power supply
Energy cost optimization
Commercial & Industrial ESS
Solar + Storage Projects
Generator + Battery Hybrid Systems
Microgrids
Backup Power
Factories & Commercial Buildings
Weak-Grid Projects
Remote & Off-Grid Applications
